This Solid State Relay Module operates on the CAN Bus to control six hydraulic valves up to 5 amps each. Developed for an Agricultural application, this product delivers exactly to the needs of this custom application.

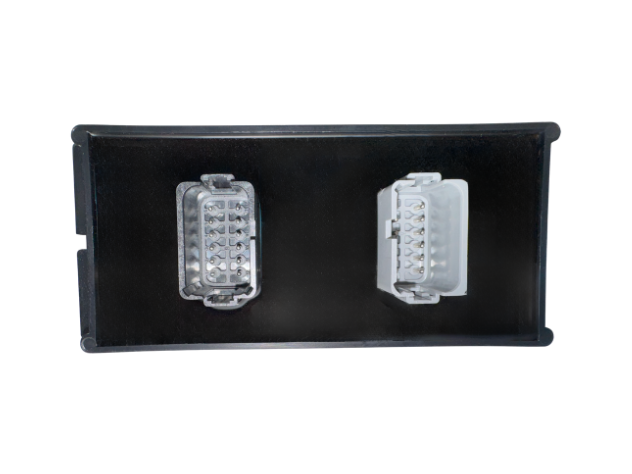

Boom Controller
Share:
Product Overview

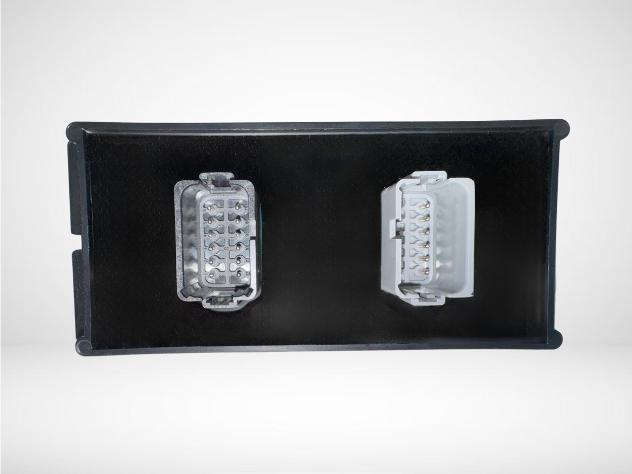

Connected to the CAN Bus on the vehicle, this module takes input via CAN commands to drive six hydraulic valves for an Agricultural application. Each valve output can pull up to 5 amps, and this module is designed for 12V systems. Connected to the system via two 12-Pin Deutsch-style connectors, this module fits into a 3″ x 7″ x 1″ package, making incorporation into the machine very easy. Coupled with Marlin’s commitment to IP67 to guard against water and particle ingress, this unit is up to the challenge of operation in all types of weather. How can our experience with this application be deployed to your challenges?
Features
- 12V
- IP67
- RoHS Compliant
- Outputs driving six hydraulic valves, 5A Max each
- CAN protocol J1939
- Two Deutsch style, 12-Pin Connectors
Benefits
- Custom solution for the application
- Designed in a short period of time
- Manufactured at a competitive price point, even at low EAU volumes
- Made to order to minimize supply chain costs
- Sealed to IP67 Standards
- Consolidates wiring and combines all relays into 1 module instead of discrete parts
Applications
- Construction
- Utility
- Refuse
- Agriculture
- Defense
- Turf Care
