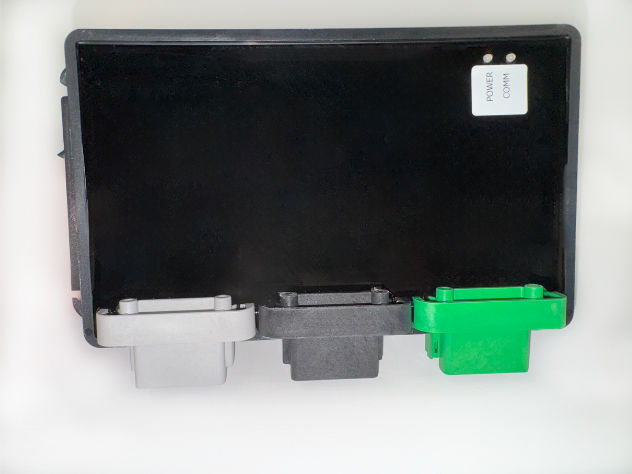

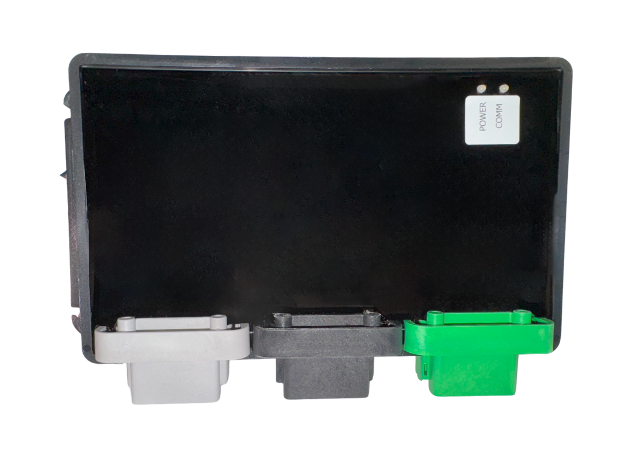

This custom module in service in the construction market has 4 digital inputs and 16 digital outputs. Used to drive 16 hydraulic valves, this unit is mounted in a very exposed location on the machine.
Custom Hydraulic Valve Controller
Share:
Product Overview
This Custom CAN Bus Input/Output module receives inputs from four discrete inputs, one digital and three analog. The outputs go to 16 hydraulic valves to control the construction market application, with each output being 3 amps. Located in a very exposed location on the machine, the Marlin Team’s experience with IP67 methods means this controller survives well in hot, cold, wet, dry and very dirty conditions.
Features
- 12V, 24V
- IP67
- RoHS Compliant
- 1 Analog Inputs
- 3 Digital Inputs
- 16 Outputs driving Hydraulic Valves, 3A Max each
- CAN protocol J1939

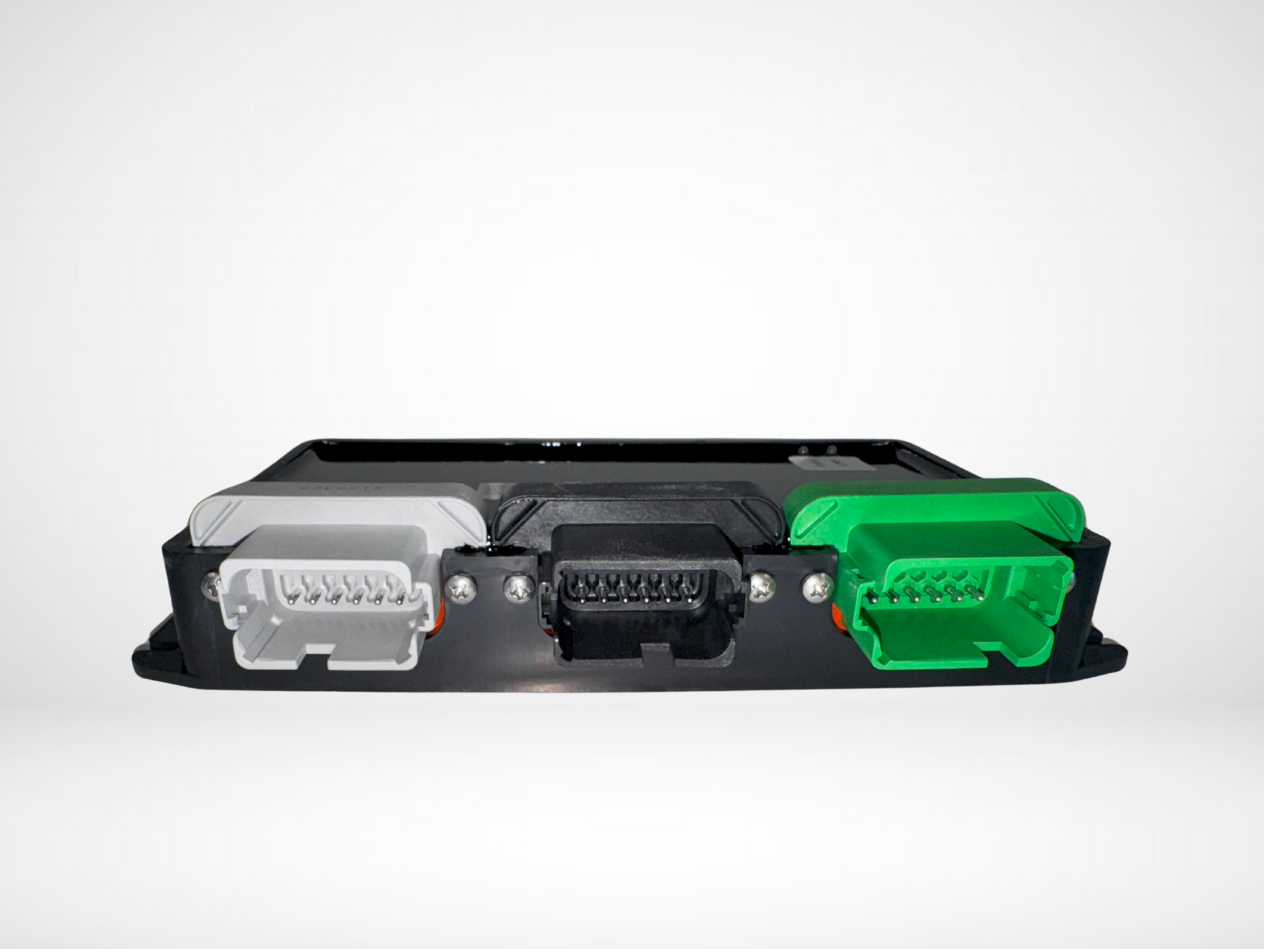

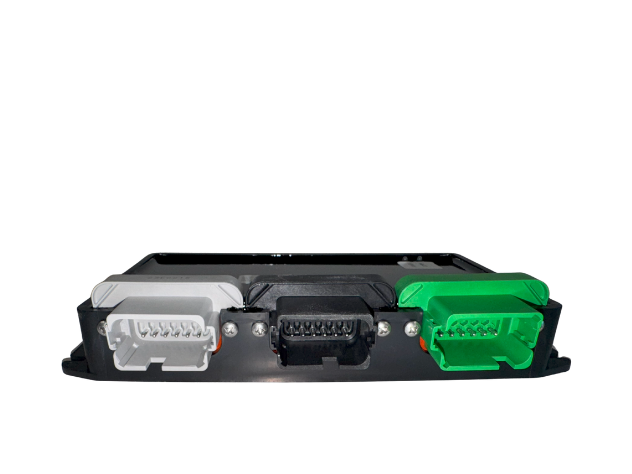

- Three Deutsch style, 12-Pin Connectors
Benefits
- Custom solution for the vehicle
- Designed in a short period of time
- Manufactured at a competitive price point
- Made to order to minimize supply chain costs
- Sealed to IP67 Standards
Applications
