This purpose-designed and built controller handles 27 inputs and drives 23 outputs and communicates on the J1939 CAN Bus. Used in a construction application, the same concepts can be designed for your custom requirement.
Custom Main Control Unit
Share:
Product Overview

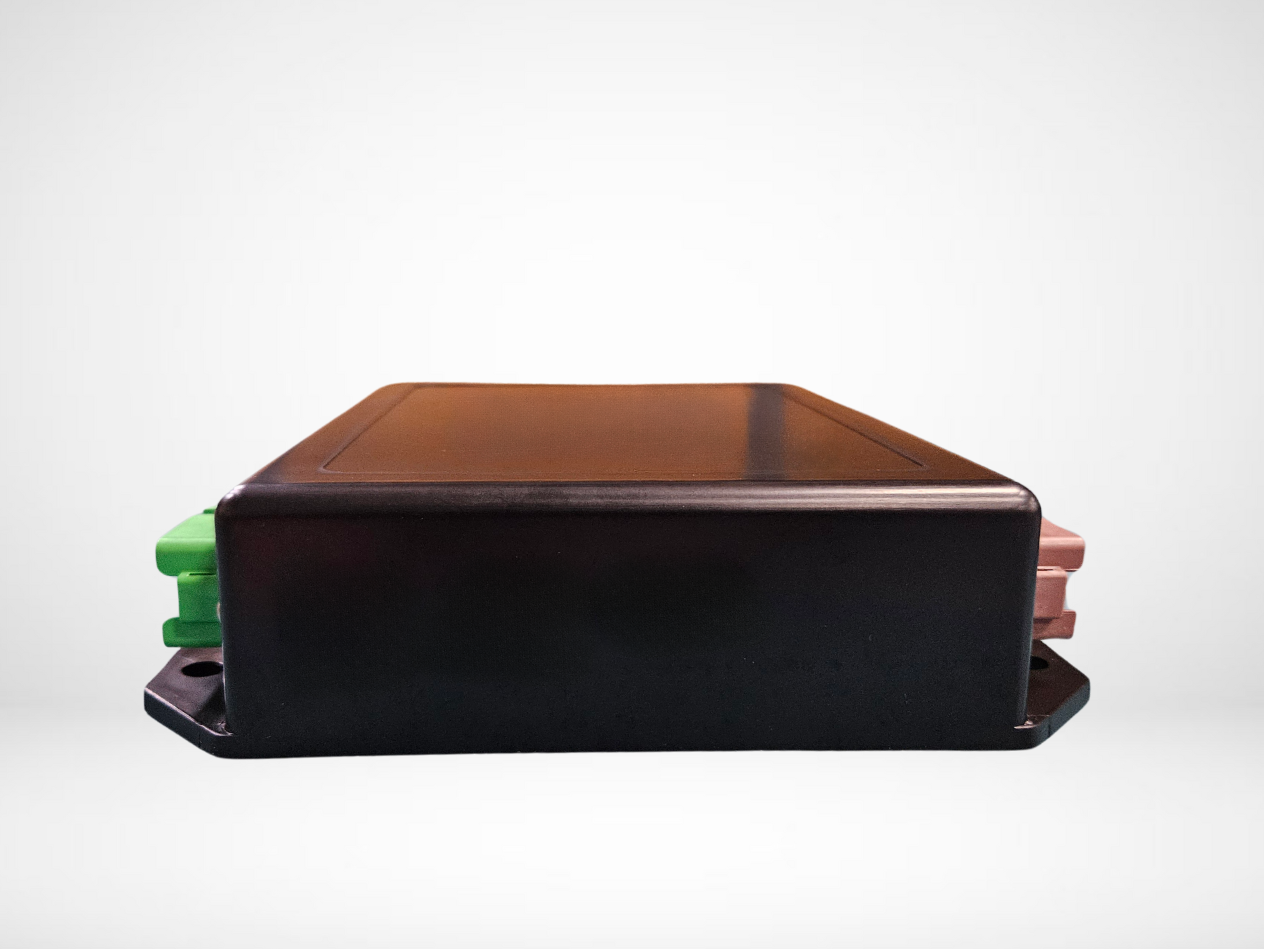

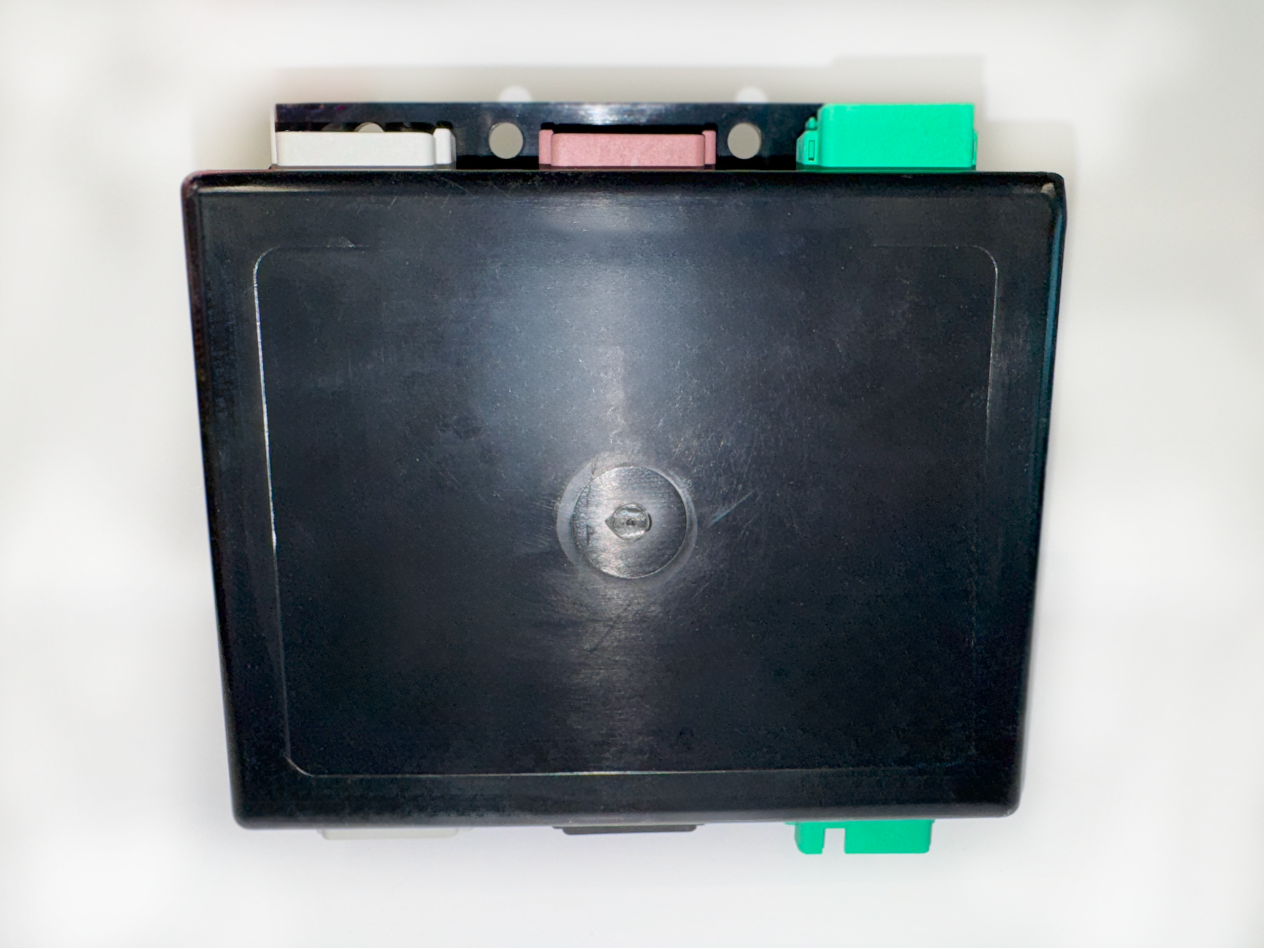

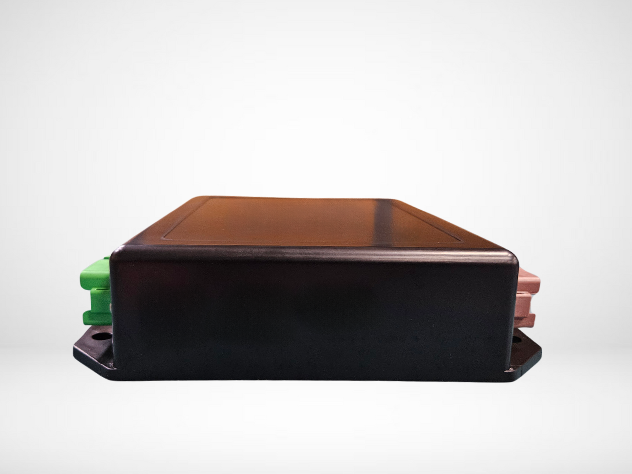

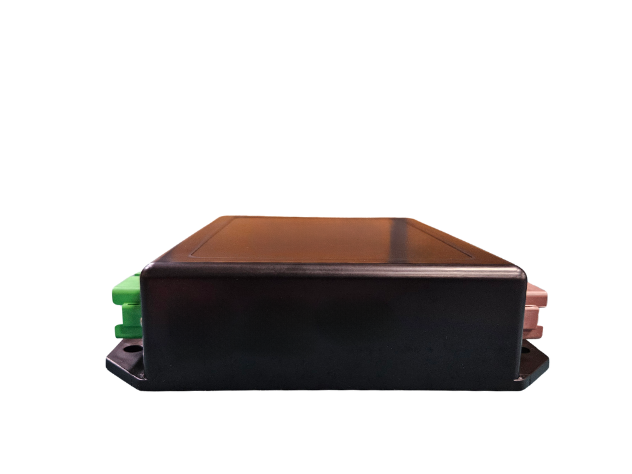

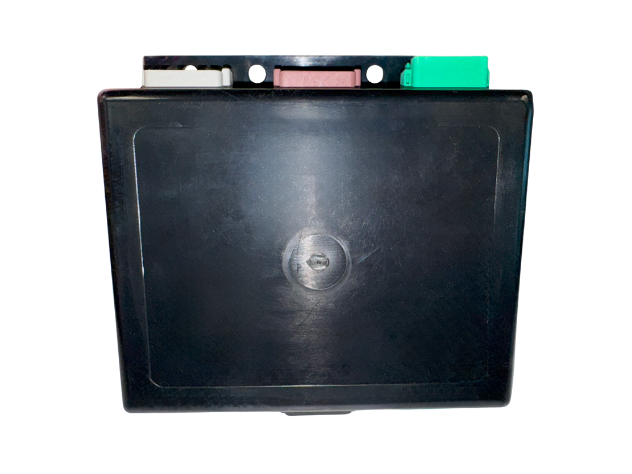

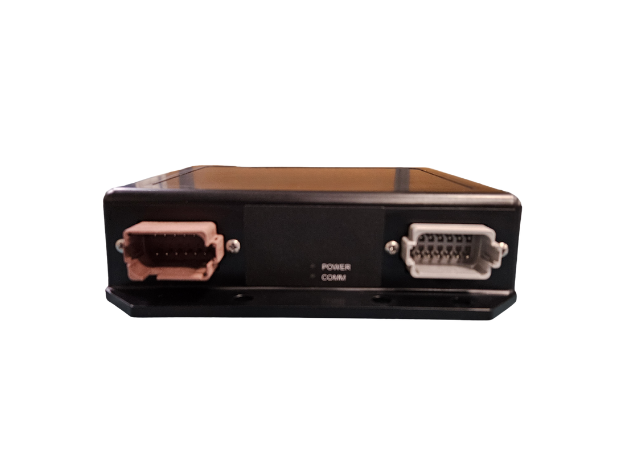

This is the sexiest black box ever. Serving as the Main Control Unit for a construction vehicle, this controller is about 7″ x 8″ x 2″ and uses five 12-Pin Deutsch connectors. Fully sealed to IP67 standards, there are just two LED’s on the enclosure. With a large range of I/O (27 inputs, 23 outputs) and communicating via CAN, this controller serves as the foundation of the vehicle’s control system.
Features
- 12V
- IP67
- RoHS Compliant
- High input and output count, variety of output current ratings
- CAN protocol J1939

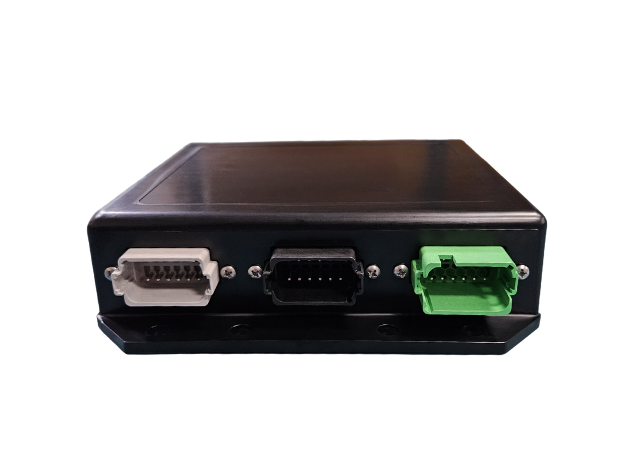

- Five Deutsch style, 12-Pin Connectors
- 5V sensor supply
- Multi-machine configurable
Benefits
- Powerful control functionality
- Entire non-engine machine I/O control
- IP67 protection
Applications
- Construction
- Utility
- Refuse
- Agriculture
- Defense
- Turf Care
