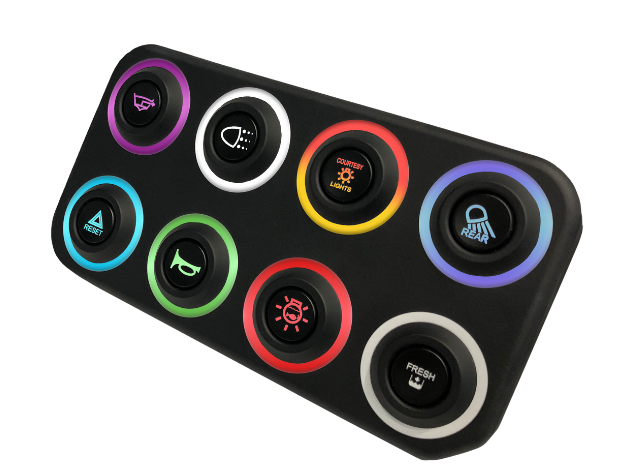

The M-Flex Legend Series 8-Button CAN keypad uses RGB LED’s to create any color outline and backlit buttons, and the keycaps are relegendable with custom graphics. Available with optional Bluetooth connectivity allowing keypad emulation via a mobile application, each key can be individually configured for on/off, momentary, toggle, scroll and many other functions.
Legend Series 8 Button CAN Bus Keypad
Share:
Product Overview
The Legend Series 8 Button CAN Keypads have relegendable keycaps and are designed for severe duty, outdoor mobile applications and built to withstand the harsh temperatures, shock and vibration, moisture and electrical transients that are common to these environments. These keypads can be designed with fully custom keycap graphics as well as RGB LEDs programmed so your exact specification.
Features
- IP67 Rated
- 12V or 24V
- Bluetooth compatibility
- Compatible with Marlin’s digital switchers and I/O Controllers
- Relegendable keypads w/ standard and custom icons
- Tactile buttons with actuation feedback
- RGB indicator lights
- J1939, CANopen, or NMEA2000 communication protocol
- 250/500/1000 kbps CAN bus speeds
- Vertical or horizontal mount
- On/Off, momentary, toggle scroll/step functions for each key

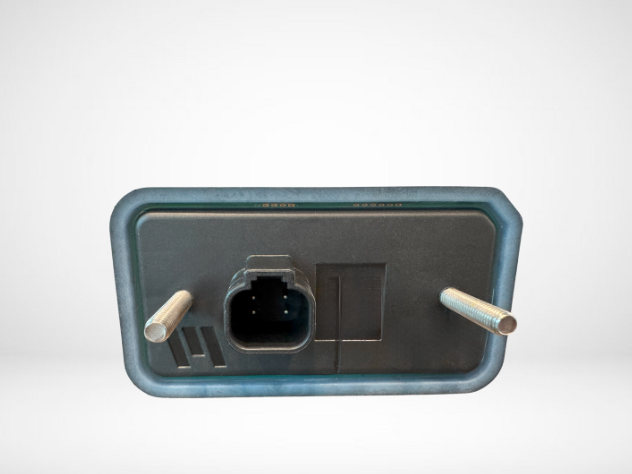

- Deutsch DT style connectors
- RoHS compliant
Benefits
- Relegendable buttons allow easy switching of icons
- Customizable icons and RGB LEDs for full user design power
- Rugged design for all off-road applications and designs
- Keypad switch types is user configurable
Applications
- Marine
- Construction
- Utility
- Refuse
- Agriculture
- Research & Development
Need something custom?
Marlin Technologies designs, engineers and delivers high quality custom design OEM electronic control solutions for nearly any severe duty application.
