This switcher/controller includes one input and 20 outputs to a max current of 20 amp loads. Handling 100 Amps total, the switcher can be easily configured via a simple XML interface, giving customers ultimate flexibility for applications.

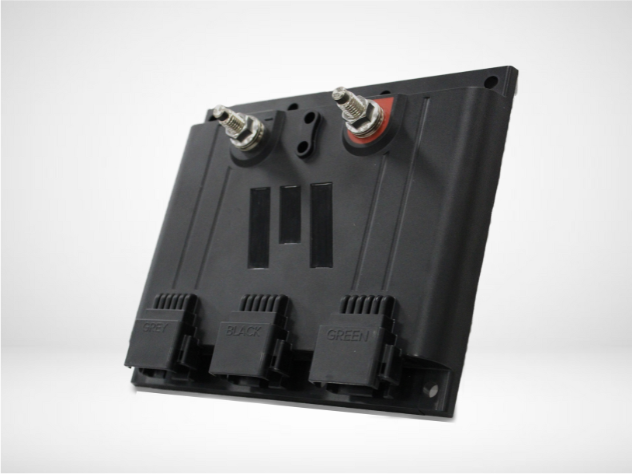

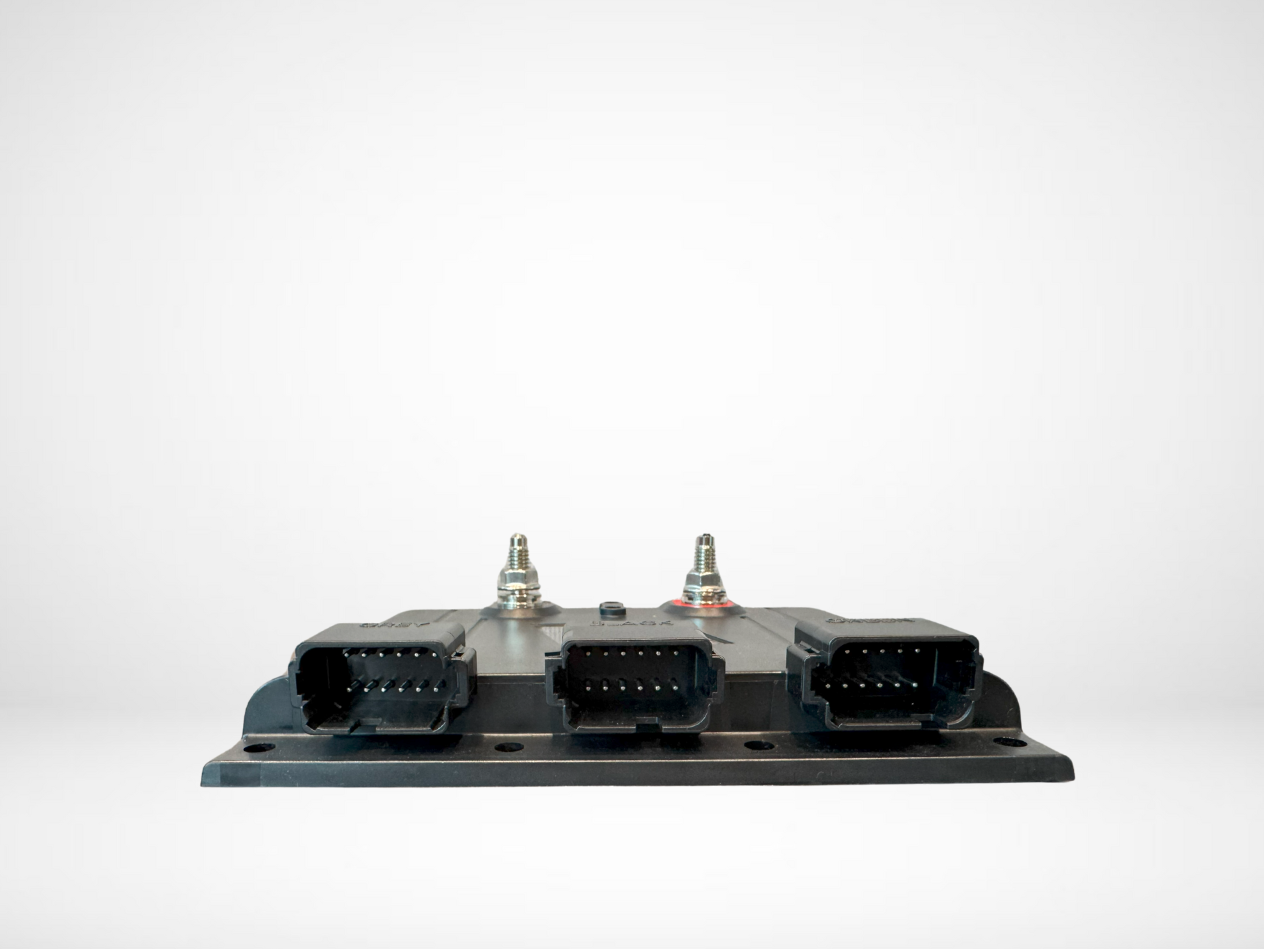

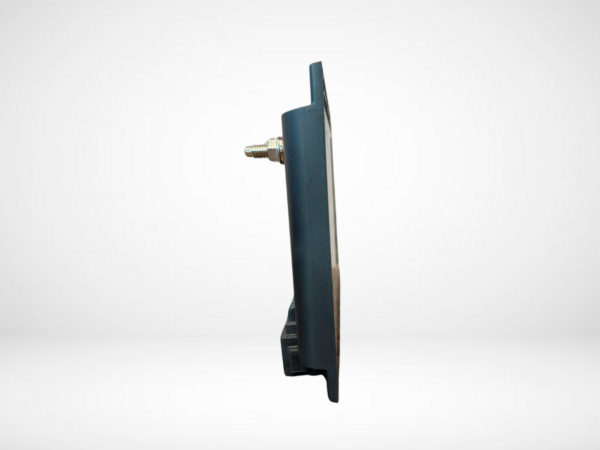

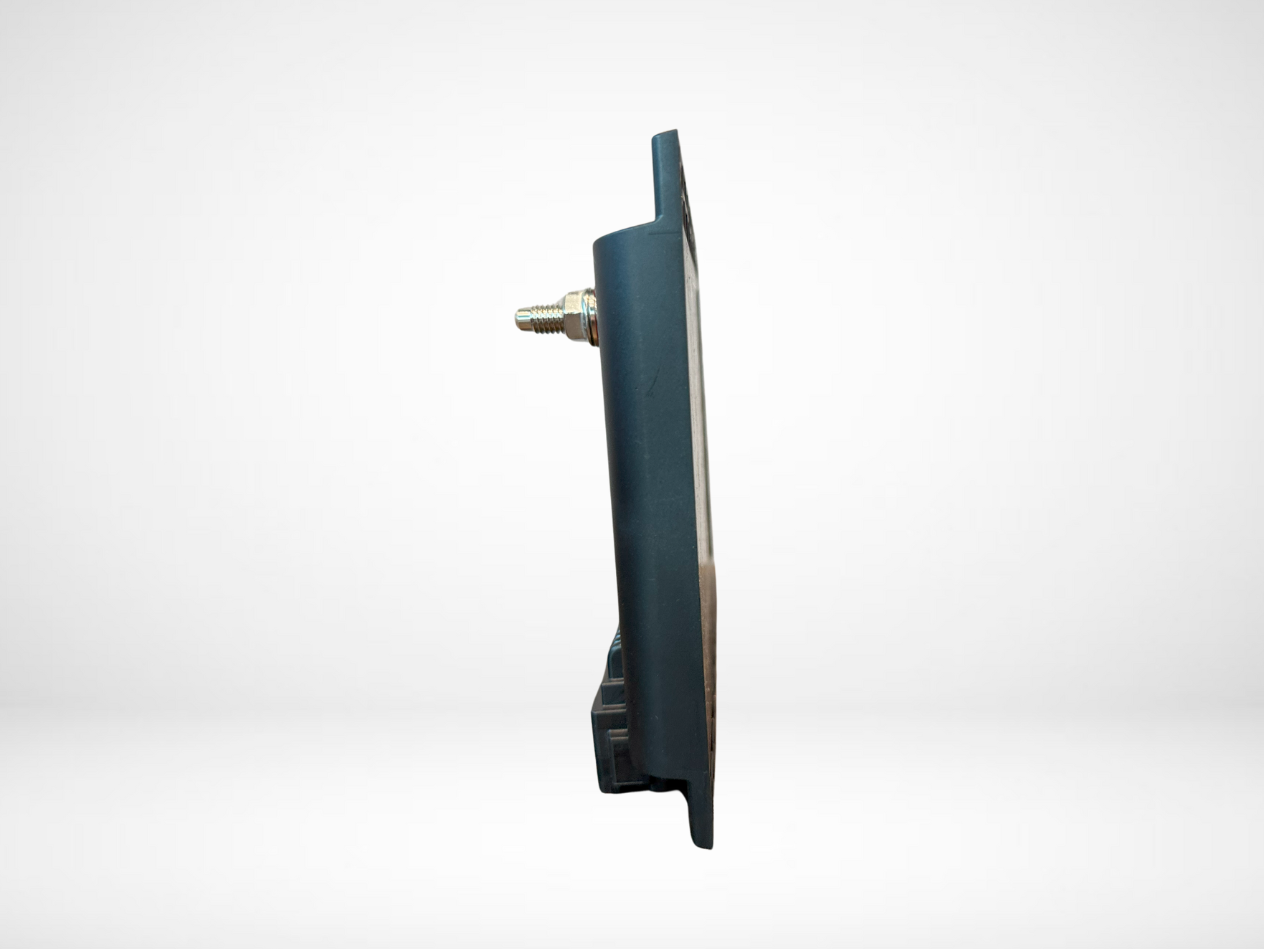

M-Flex Digital Switcher M20-01 Controller
Share:
Product Overview
The M-Flex Digital Switcher M20-01 Controller is designed to withstand the harsh temperatures, shock and vibration, moisture and electrical transients that are common to these harsh environments. This controller has 1 input and 20 outputs, fully user configurable for each user specific application. The controllers configuration is done via XML, designed for ease and the ultimate customer experience.
Features
- IP67 Rated
- 12V or 24V
- Configurable inputs and outputs for customizing Digital Switcher to each application
- Fully configurable via XML to customize output / switching functions for each application
- Custom software development available per customer request
- (16) x 10A Outputs w/ current monitoring
- (4) x 20A Outputs w/ current monitoring
- Compatable with the M-Flex keypads and displays, as well as Simrad and Garmin Displays
- 125/250/500/1000 kbps CAN bus speeds
- Outputs have closed-loop current sensing for accurate proportional valve control
- RoHS Compliant
- Fully encapsulated electronics for complete enviromental protection
- Operating Temperature -40°C to +85°C
- Operating Humidity -40°C to +85°C
- Deutsch DT style connectors
Benefits
- User programable allowing for flexible use cases of wide ranges
- Centralized power distribution unit
- Low profile enclosure reduces cost and allows easier installation
- Rugged design for all off-road applications and designs
Applications
- Marine
- Construction
- Utility
- Refuse
- Agriculture
- Research & Development
