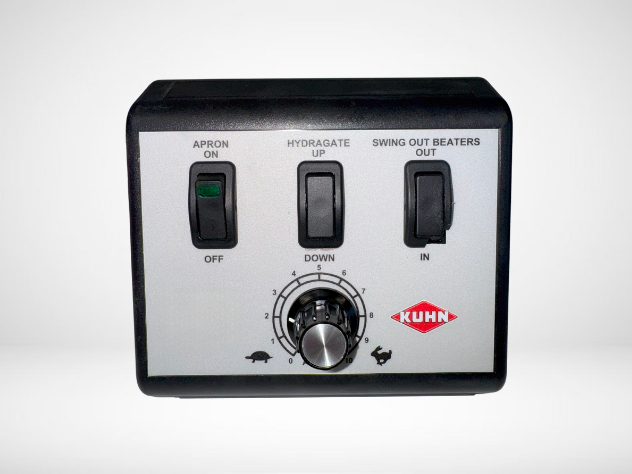

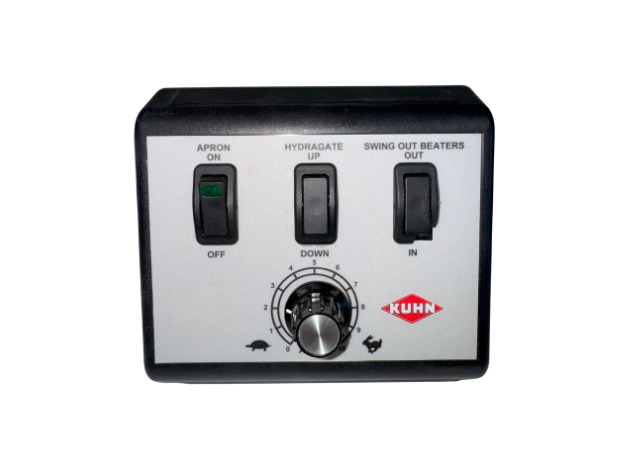

Main Control Unit

This controller is purpose-built for a specific application requiring 9 inputs and 51 outputs. In production since 2014, it has been revised several times to meet the changing needs of the application during that time as well as to incorporate updated design materials and techniques. With over 5000 units in the field, our customer’s feedback is very positive.


Categories: ,

Developed for a large Agricultural application, this product is a great example of a purpose-built, Custom Power Distribution Unit Controller. The application requires 9 specific analog inputs and of course communicates on the CAN Bus. The controller provides 51 specific outputs, in this case all nominal 12VDC. These outputs range from 1 amp to 12 amp maximum, with the vast majority being 3A each. One output is PWM, and two outputs combine to form an H-Bridge. All these requirements are driven by the needs of the application/machine, and are designed to be integrated into the rest of the control system. What control requirements do you need? What ones are you struggling to find in an off the shelf product range? This controller has been serving this global, multi-national OEM for over ten years, with an average usage between 400 and 500 units per year.
