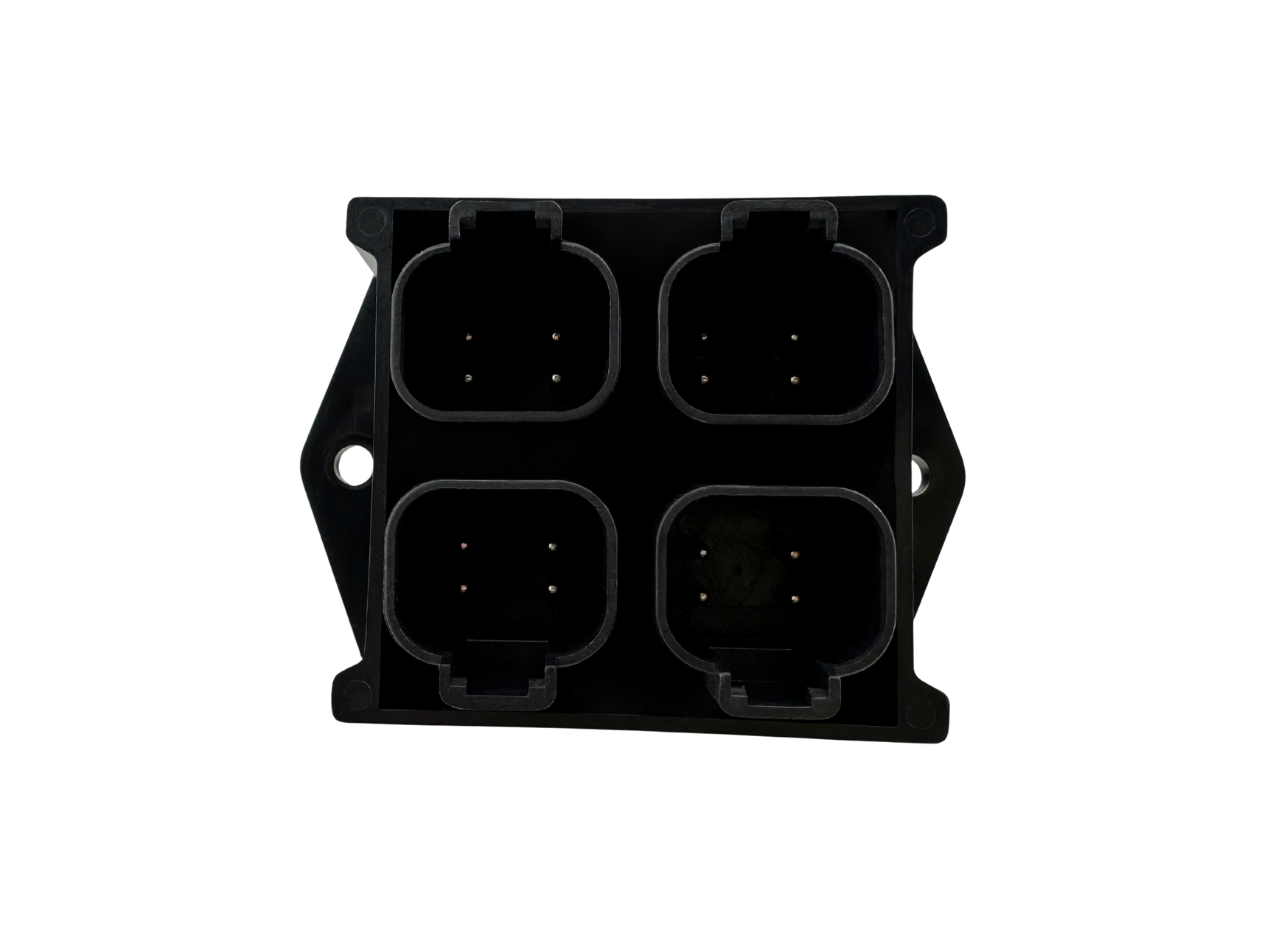

M-Flex 2×2 CAN Splitter

The M-Flex 2×2 CAN Splitter simplifies CAN network integration by providing four Deutsch DT-style connectors for fast and reliable messaging. This module combines CAN communication with power and ground distribution in a single compact assembly, reducing wiring complexity and installation time. Built for durability, the splitter features IP67 ingress protection and operates in extreme temperatures from -40°C to 125°C, making it ideal for harsh mobile environments. With a 12V supply and 13A current capacity, the M-Flex 2×2 CAN Splitter delivers dependable performance in OEM systems where space and reliability are critical.

Contact Marlin

Design Resources

Categories: Bridges & More

Share:

The M-Flex 2×2 CAN Splitter is a rugged, space-efficient solution for simplifying CAN network connections in OEM mobile applications. Featuring four Deutsch DT-style connectors, it enables fast and reliable CAN messaging while integrating power and ground distribution in a single assembly. Built for harsh environments, the splitter offers IP67 ingress protection and operates across a wide temperature range from -40°C to 125°C. With a 12V supply voltage and 13A maximum current capacity, this lightweight module delivers durability and performance in a compact design, making it ideal for demanding mobile systems.

Four rugged four-pin Deutsch DT-style connectors for easy CAN network integration
Fast and reliable CAN messaging for OEM systems
Integrated power and ground distribution in a single compact assembly
IP67-rated for dust and water protection
Wide operating temperature range: -40°C to 125°C (-40°F to 257°F)
Supports 12V supply voltage and up to 13A maximum current
Lightweight design: 2.4 oz (68 g)
Dimensions: 7.29 in L x 3.01 in W x 0.82 in D (183 mm x 77 mm x 21 mm)

Simplifies wiring by combining CAN communication and power/ground in one compact module
Reduces installation time with four pre-configured Deutsch connectors
Enhances reliability in harsh environments with IP67-rated protection
Supports system efficiency through fast and stable CAN messaging
Handles extreme conditions with a wide operating temperature range (-40°C to 125°C)
Space-saving design minimizes footprint while maintaining functionality
Lightweight construction for easy integration into mobile applications
