The M‑Flex 7” Color Display is designed specifically for severe‑duty outdoor mobile applications, built to withstand harsh temperatures, shock and vibration, moisture, and electrical transients common to these environments. Its high‑brightness 1000 cd/m² LCD with wide 160° viewing angle ensures true sunlight readability, while the optically bonded, glove‑friendly PCAP touchscreen provides durability and ease of use. The display supports a wide operating voltage range from 8–36 VDC for both 12V and 24V systems, with reverse polarity protection. Four CAN ports allow communication using SAE J1939, CANopen, and NMEA 2000 protocols at selectable speeds of 250, 500, or 1000 kbps. Six configurable inputs and outputs enable flexible integration, including analog, digital, frequency, PWM, and resistive signals, with output options such as PWM, high‑side, source/sink, and H‑bridge. The unit is IP67‑rated for dust and water protection, with operating temperatures from –30°C to 85°C, making it suitable for extreme conditions. Embedded GPS expands application possibilities, and TouchGFX readiness allows OEMs to easily add custom graphics and user interfaces for off‑highway vehicle operations

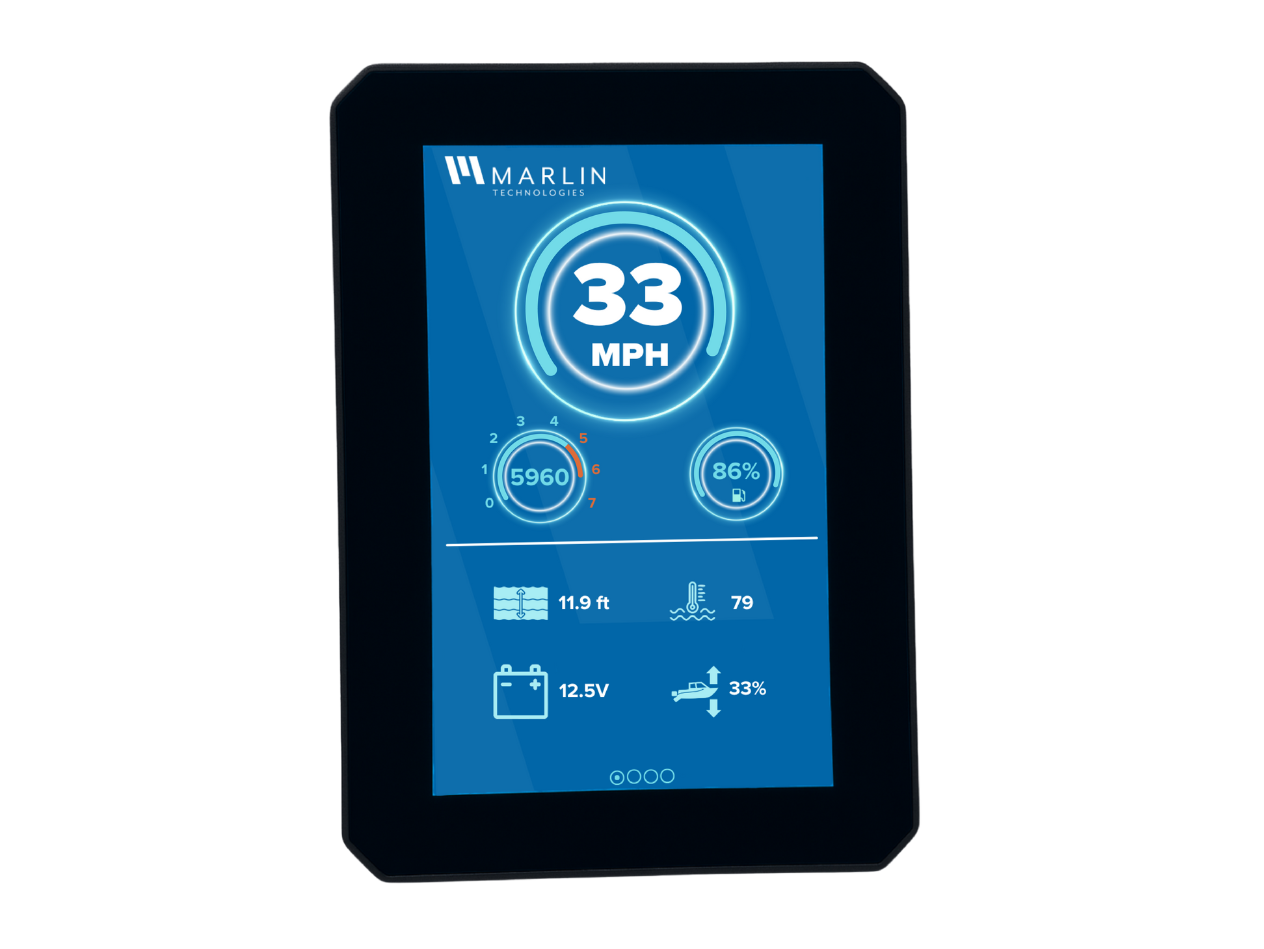

M-Flex 7 Inch CAN Bus Display
Share:
Product Overview
The M‑Flex 7” Color Display is a rugged, high‑performance operator interface engineered for demanding outdoor mobile equipment. Designed to withstand extreme temperatures, heavy vibration, moisture, and electrical transients, it delivers reliable operation in the harshest environments. Its 1000 cd/m² sunlight‑readable touchscreen and wide viewing angle ensure clear visibility in any lighting condition, while the optically bonded PCAP touch panel provides durability and glove‑friendly usability. With four CAN ports supporting J1939, CANopen, and NMEA 2000, plus six configurable I/O channels and embedded GPS, the M‑Flex 7” offers exceptional flexibility for machine control and monitoring. TouchGFX compatibility enables OEMs to easily develop custom, modern user interfaces, making the display a powerful platform for off‑highway, construction, agriculture, and utility applications.
Features
• 7” high‑brightness LCD (1000 cd/m²) for true sunlight readability
• Wide 160° viewing angle for excellent visibility from any position
• Optically bonded PCAP touchscreen that is durable and glove‑friendly
• Rugged IP67‑rated enclosure for dust and water protection
• Wide operating voltage range (8–36 VDC) with reverse polarity protection
• Four CAN ports supporting SAE J1939, CANopen, and NMEA 2000
• Selectable CAN bus speeds: 250 / 500 / 1000 kbps
• Six configurable I/O channels (analog, digital, frequency, PWM, resistive, quadrature encoder)
• Output options: PWM, high‑side, source/sink*, and H‑bridge*
• Embedded GPS for location‑aware applications
• 12V sensor power output (300 mA max)
• TouchGFX‑ready platform for custom GUI development
• Wide operating temperature range: –30°C to 85°C
• Deutsch DT connectors for secure, field‑ready integration
*Source/sink and H‑bridge available on I/O #1 and #2 when configured as outputs
Benefits
• Reliable performance in harsh environments thanks to rugged construction, IP67 sealing, and wide temperature tolerance
• Excellent outdoor visibility with a high‑brightness 1000 cd/m² display and wide viewing angle
• Improved operator usability through a glove‑friendly, optically bonded PCAP touchscreen
• Flexible system integration with four CAN ports supporting multiple industry‑standard protocols
• Versatile I/O configuration allows the display to adapt to a wide range of machine control needs
• Enhanced functionality with embedded GPS for location‑based features and tracking
• Stable power compatibility across 12V and 24V systems with reverse polarity protection
• Faster development cycles using TouchGFX for easy creation of custom GUIs and user experiences
• Reduced wiring complexity with onboard sensor power output for external devices
• Ideal for off‑highway and mobile equipment where durability, visibility, and connectivity are critical
Applications
- Marine
- Construction
- Utility
- Refuse
- Agriculture
- Research & Development
