The M-Flex Isolated CAN Bridge electrically isolates two bus networks, allowing connection to networks operating at different voltage potentials as well as different speeds. The Isolated CAN Bridge also offers up to 40 pass or block messages between networks. This module can be used to manage bus loads whether the isolated feature is required or not, and the larger number of filters improves specificity of message transfer.

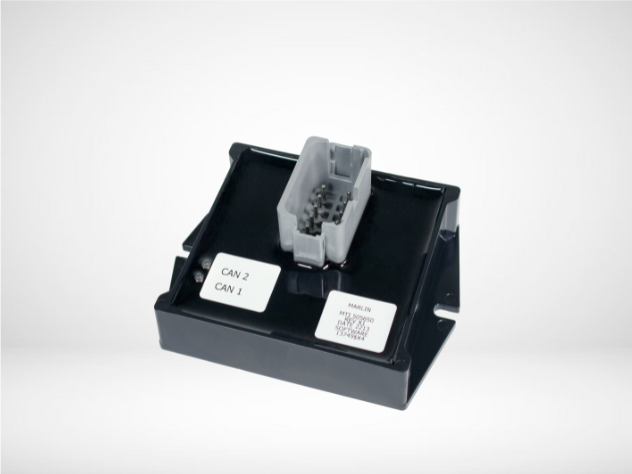

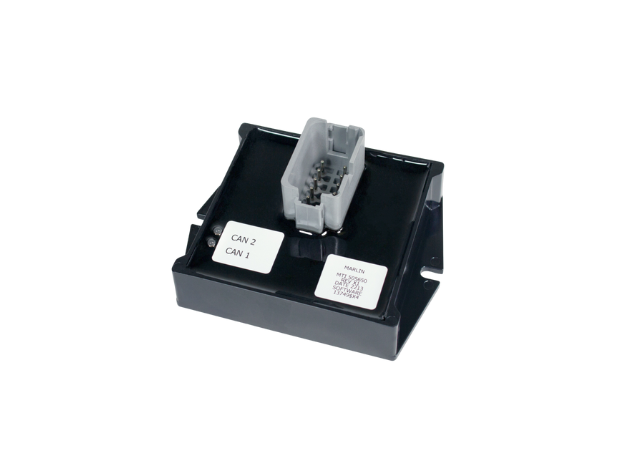

M-Flex Isolated CAN Bridge
Share:
Product Overview
M-Flex Isolated CAN Bridge is a two-channel CAN bus bridge for interconnecting two CAN bus networks with power isolation, and is built to withstand the harsh temperatures, shock and vibration, moisture and electrical transients that are common to these environments.
Features
- IP67 Rated
- 12V or 24V
- Galvanic isolation between CAN networks
- Fully encapsulated electronics for complete enviromental protection
- Two CAN channels for bridging between two networks
- Forty filters per channel to pass or block messages
- 250/500/1000 kbps CAN speeds
- Two diagnostic LEDs for CAN bus power and communication status
- Deutsch DT style connectors
- RoHS compliant
Benefits
- User programable allowing for flexible use cases of wide ranges
- Rugged design for all off-road applications and designs
- Fully configurable to block or allow up to 40 messages on CAN bus
- Galvanic isolation to electrically isolate the two CAN networks
Applications
- Marine
- Construction
- Utility
- Refuse
- Agriculture
- Research & Development
