This more powerful version of our CAN Bridge has been updated with more resources to allow for up to 64 filters, each one either blocking or passing messages based on criteria you set. It also allows connecting two buses that may operate at different baud rates.

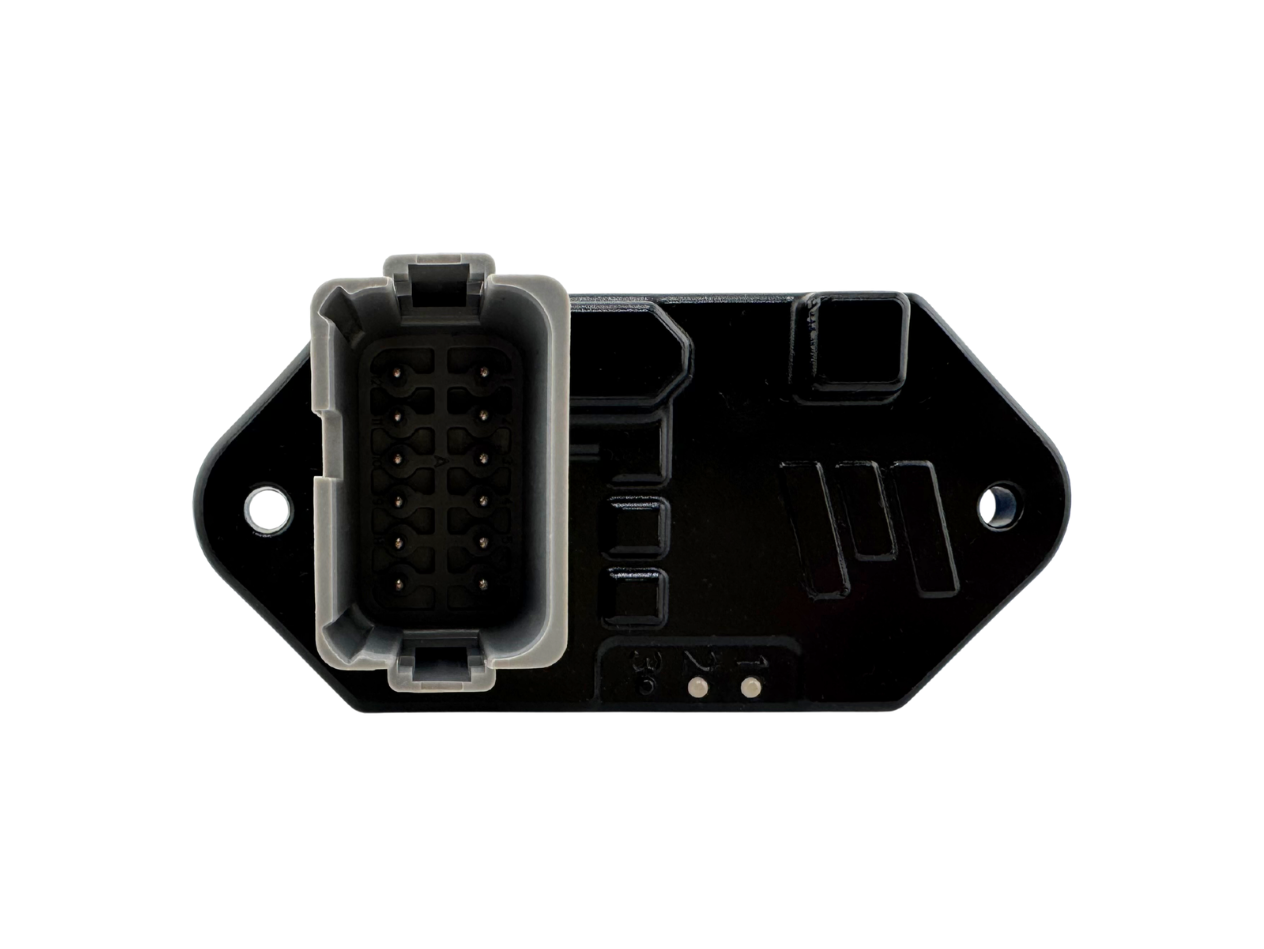

M-Flex Link CAN Bridge 2 CH
Share:
Product Overview
The Advanced CAN Bridge is a rugged, high-performance solution designed to intelligently connect and manage communication between two independent CAN networks. Built as a more powerful evolution of our standard CAN Bridge, this model delivers expanded processing resources that support up to 64 configurable message filters per channel, enabling precise control over which CAN messages are passed or blocked.
Engineered for demanding environments, the unit features fully encapsulated electronics and an IP67-rated enclosure, providing reliable protection against dust, moisture, and harsh operating conditions. With support for 12V or 24V systems and independent baud rates on each CAN bus, it seamlessly bridges networks operating at 250, 500, or 1000 kbps, making it ideal for mixed-system architectures.
Configuration is handled through Marlin’s Programming Tool, allowing users to tailor message filtering and behavior to their specific application needs. Diagnostic LEDs provide immediate visual feedback on CAN bus power and communication status, while Deutsch DT-style connectors ensure secure, automotive-grade connections.
Designed for flexibility, durability, and performance, the Advanced CAN Bridge is well-suited for applications that require controlled data sharing, reduced bus load, and reliable CAN communication across diverse industries such as marine, construction, utility, refuse, agriculture, and R&D. Custom software options are also available to support specialized or proprietary system requirements.
Features
- IP67 Rated
- 12V or 24V
- Fully encapsulated electronics for complete enviromental protection
- Two CAN channels for bridging between two networks
- 64 filters per channel to pass or block messages
- 250/500/1000 kbps CAN speeds
- Two diagnostic LEDs for CAN bus power and communication status
- Deutsch DT style connectors
- RoHS compliant
Benefits
- User configurable via Marlin’s Programming Tool, allowing for flexible use cases for a wide range of applications
- Connects two CAN Buses, sharing only desired messages thereby reducing bus loads to targeted levels
- Custom software capabilities allow for specialized application development, let us know what you need to accomplish
Applications
• Marine
• Construction
• Utility
• Refuse
• Agriculture
• Research & Development
